GETTING THE RIGHT GASKET IS AS EASY AS A-B-C

Ask us for a Total Refrigeration Gaskets, Inc. Sample Kit. Use the color code here to identify the correct profile.

TRG Sample Kit.

A. How does your gasket mount to the door?

Does it Screw On? (TRG color code: Blue Blue )

Getting The Right Gasket is as easy as A-B-C

Is it a Dart Style? (TRG color code: Black Black )

Getting The Right Gasket is as easy as A-B-C

Does it Push In? (TRG color code: Green Green )

Getting The Right Gasket is as easy as A-B-C

Dart style Glass Door gaskets are in a separate group for easy identification. (TRG color code: Red Red )

B. Measure your gasket

All gaskets can be measured Corner-to-Corner (Outside Dimensions).
Look for “Measure Here” on each profile diagram.

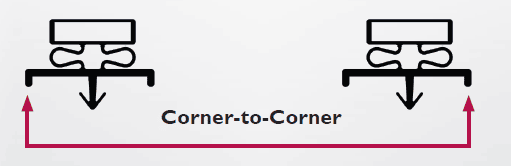

Measure Corner-to-Corner

Dart-style and Push-In gaskets can also be measured Dart-to-Dart. If a gasket is ill-fitting, in poor condition, or missing, we recommend Dart-to-Dart measurement.

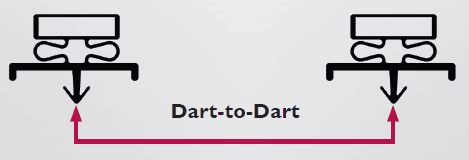

Measure Dart-to-Dart

A simple way to be sure of getting an accurate measurement is to measure from the center of the grooves, or from the outside of one side to the inside of the other (see below).

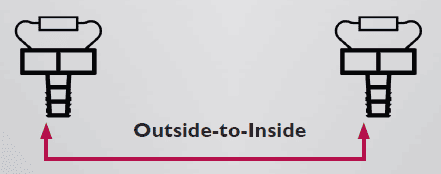

Measure Outside-to-Inside

C. Number of Sides
Most Walk-in gaskets do not extend across the bottom of the door. Tell us if your gasket has 3 or 4 sides.

Still confused? Check our Total Pages, where our items are listed by manufacturer.
